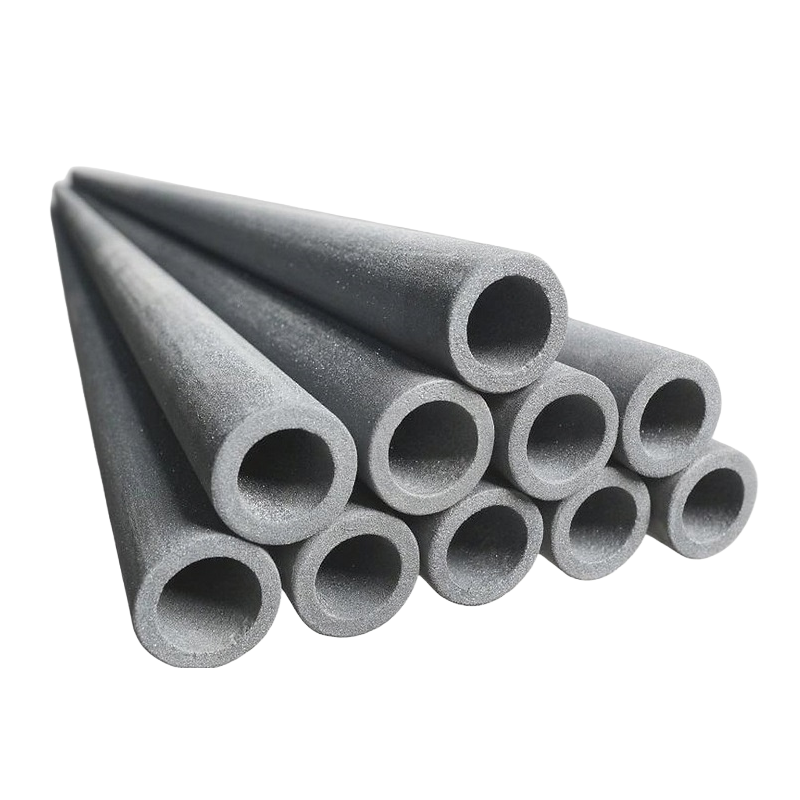

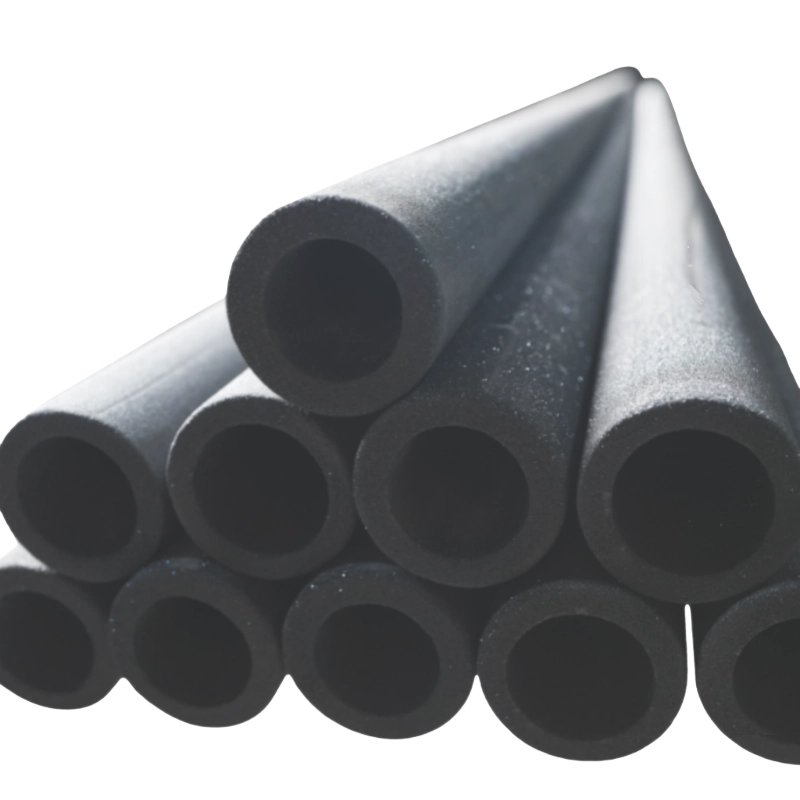

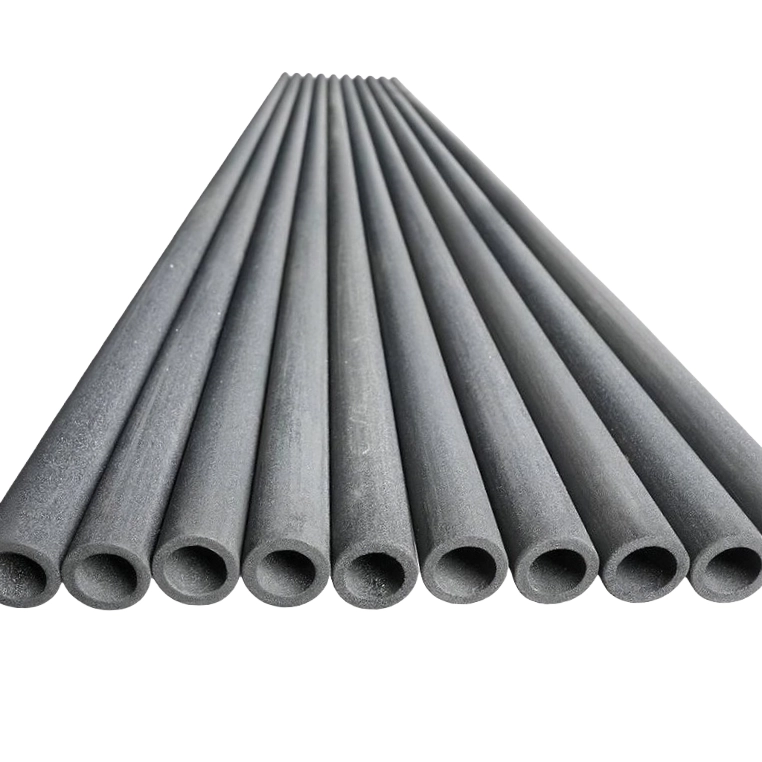

Kiln Shelfves RSiC Roller Tech Ceramic For Furnace Refractory
PRODUCT DESCRIPTION

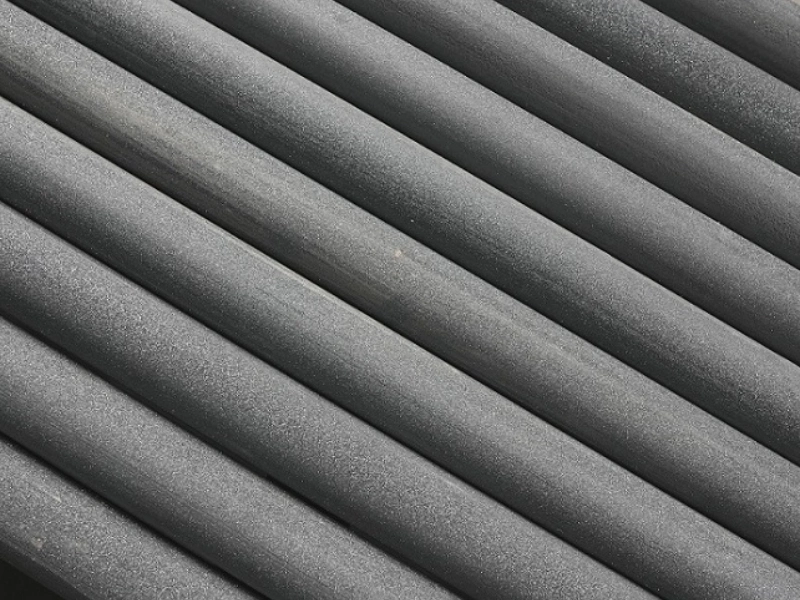

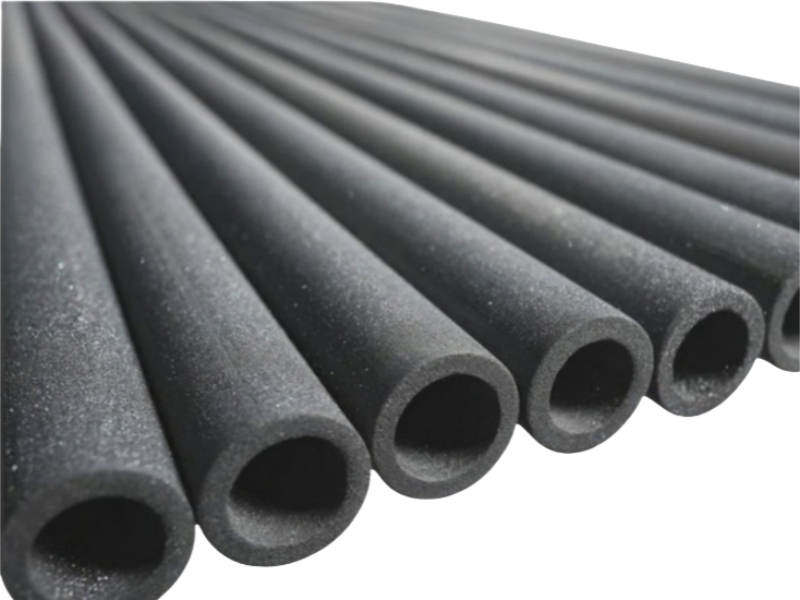

As a critical component in high-temperature industrial kilns, the Recrystallized silicon carbide roller is indispensable in modern manufacturing. This advanced RSiC roller is renowned for its exceptional high-temperature resistance, superior strength, outstanding thermal shock resistance, and excellent oxidation stability, making SiC roller widely applicable across numerous industrial sectors.

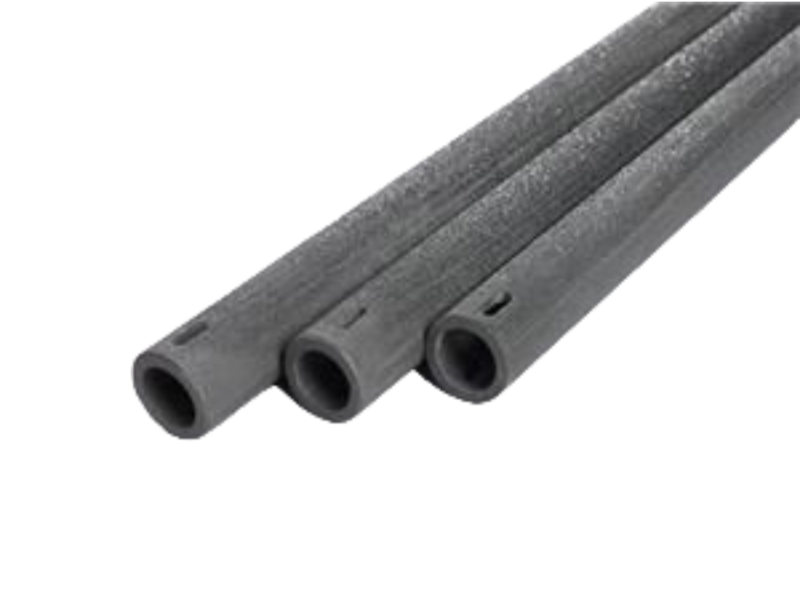

A RSiC roller is a specialized kiln furniture piece crafted from silicon carbide material, primarily used as a conveying component in high-temperature industrial furnaces. The RSiC roller made from this material not only possesses excellent chemical corrosion resistance, enabling long-term operation in highly corrosive and ionic environments, but also boasts an exceptionally long service life.
Due to their superior performance, Recrystallized silicon carbide roller products are extensively used in industries such as ceramics, glass, metallurgy, and chemical engineering. In the ceramic industry, the RSiC roller reliably transports ceramic bodies through high-temperature kilns, ensuring a smooth firing process. In glass manufacturing, this RSiC roller withstands extreme temperature environments and assists in glass shaping processes. In metallurgical applications, the RSiC roller plays a vital role in high-temperature melting processes, while in the chemical industry, its exceptional chemical corrosion resistance makes it suitable for various chemical reaction environments.
MAIN PARAMETER
High Temperature Kiln Equipment Industry | RSiC |
SiC Content (%) | ≥99% |
Bulk Density (g/cm3) | 2.65~2.75 |
Apparent Porosity (%) | <17 |
Room temperature strength (MPa) | 90~100 |
Strengthat 1300℃(MPa) | 100-110 |
Elasticity modulus at 20℃ | 240 |
Thermal Conductivity At 1200℃(W/mk) | 36 |
Thermal Expansion x10-6/℃ | 4.6 |
Max Using Temperature（℃） | 1650℃ |
Hardness At 20°C (Kg/mm2) | 2000 |
Fracture Toughness At 20°(MpaxM1/2) | 2.0 |
PRODUCT DETAIL

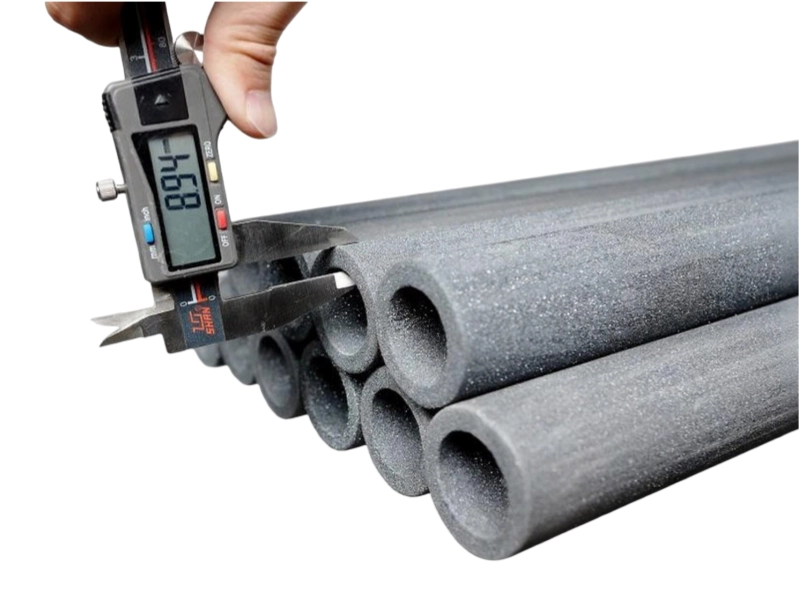

The RSiC roller for furnace applications represents advanced refractory technology. Recrystallized silicon carbide roller components are manufactured using sophisticated silicon carbide technical ceramics, endowing them with multiple exceptional properties including high-temperature resistance, rapid cooling and heating capability, high-temperature creep resistance, enhanced bending strength, superior thermal shock resistance, strong oxidation resistance, excellent wear resistance, and outstanding corrosion resistance. These RSiC roller products maintain their structural integrity during long-term use without cracking or bending, while providing exceptional high-temperature load-bearing capacity.
These characteristics enable the RSiC roller to demonstrate significant performance advantages in high-temperature environments.
As essential transmission components in kilns, Recrystallized silicon carbide roller units reliably support and transport products such as ceramics, lithium battery materials, and magnetic materials through high-temperature sintering zones. Widely implemented in tunnel kilns and similar applications, this advanced RSiC roller technology serves as crucial kiln furniture in high-temperature firing areas, bearing the complete weight of ceramic structures throughout the firing process. The service life of a premium RSiC roller can reach 5-10 times that of conventional refractory material rollers, providing exceptional long-term value and reliability.

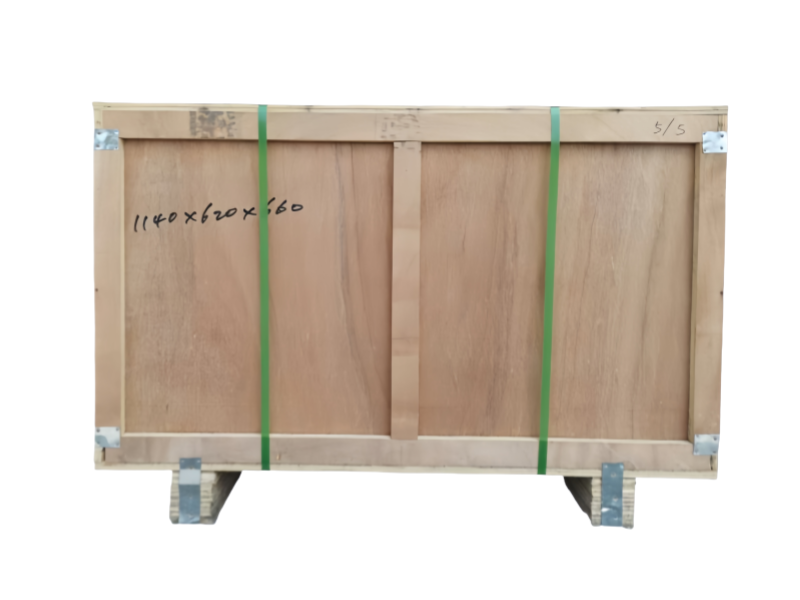

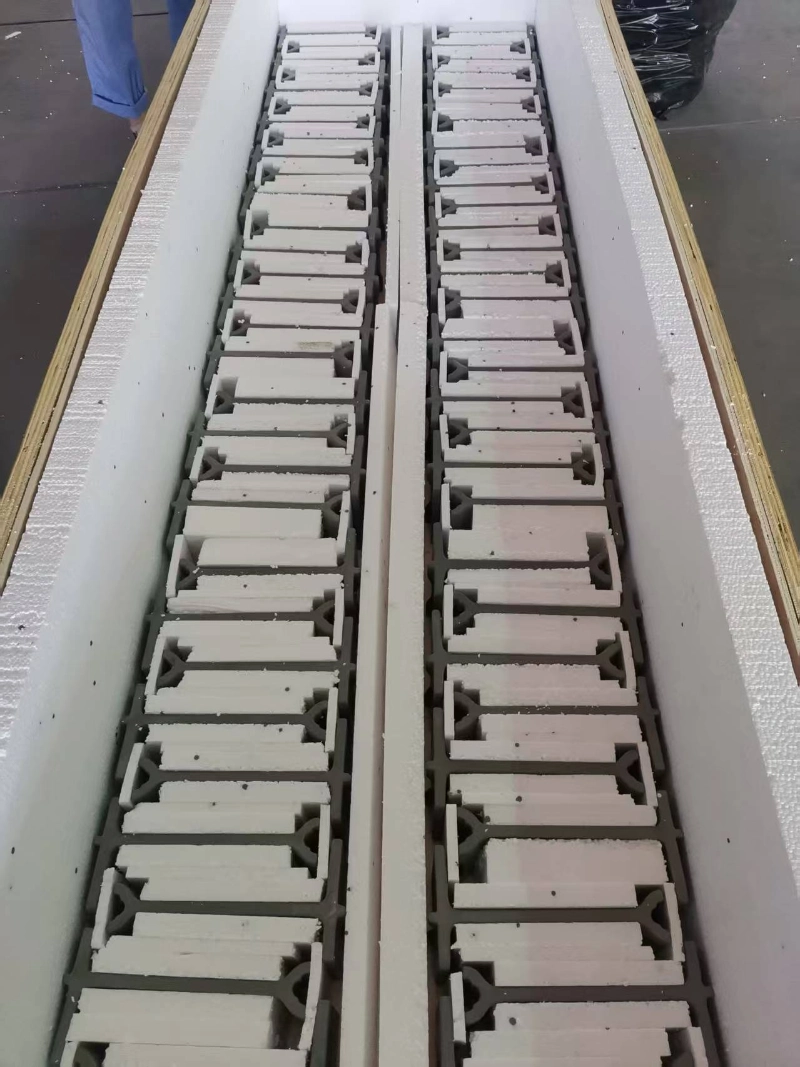

PACKING
OUR SERVICE
Riseport Global Traders Ltd.(Shenyang) has established a full industry chain model that integrates raw material supply, production and processing, customized services, cross-border trade, and supply chain support by focusing on the strategic new material field of silicon carbide (SiC). SiC roller covers the entire process from the procurement of silicon carbide raw materials to the export of end products, reducing the marginal cost of raw materials through centralized procurement while controlling quality stability.
