Spray Nozzle RBSiC Tech Ceramic Refractory
PRODUCT DESCRIPTION

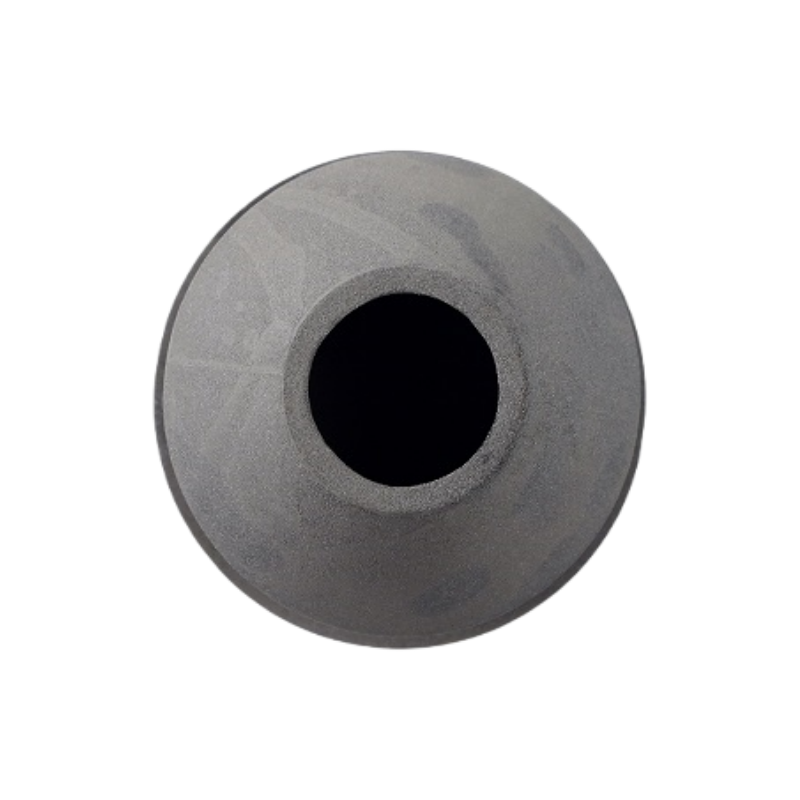

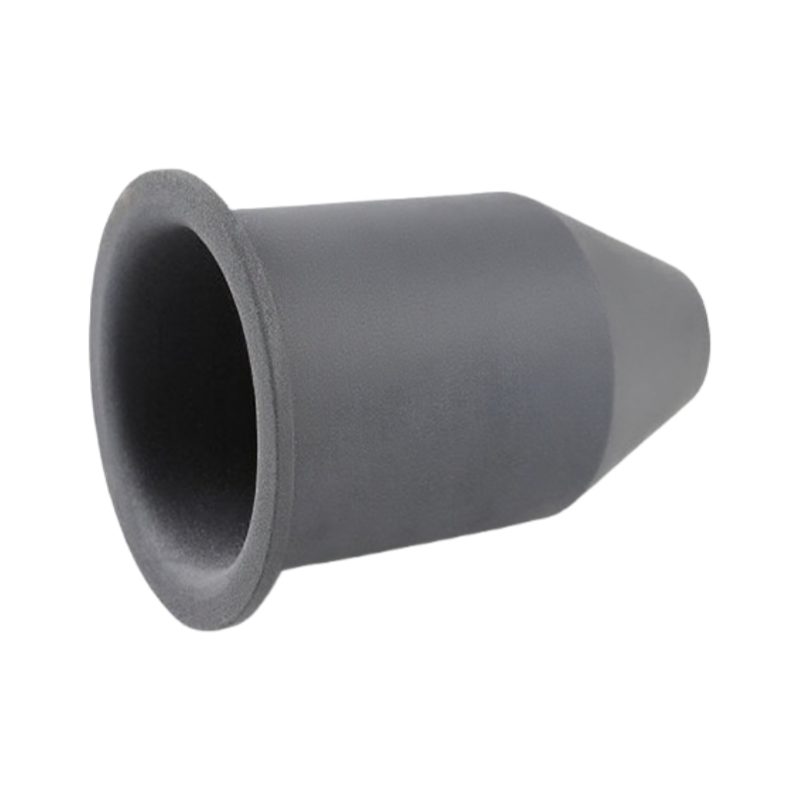

Reaction bonded silicon carbide burner nozzle(RBSiC tech ceramic) is an industrial combustion equipment made of reaction bonded silicon carbide material, widely used in high-temperature industrial kilns and other scenarios
The reaction bonded silicon carbide burner nozzle has the characteristics of ultra-high temperature, corrosion resistance, and long service life. RBSiC tech ceramic burner nozzle has become an ideal choice under harsh working conditions, especially suitable for high-temperature corrosive environments; High purity processes ; Efficient combustion system.
CORE CHARACTERISTICS
Reaction bonded silicon carbide burner nozzle is a high-performance ceramic burner component with the following notable features:
Excellent high temperature resistance: Long term use temperature can reach 1350 ° C, stable structure under high temperature environment, and reliable performance.
Outstanding thermal shock resistance: Thanks to its low thermal expansion coefficient, RBSiC tech ceramic can withstand severe temperature fluctuations and frequent rapid cooling and heating processes, making it less prone to cracking.
Strong corrosion resistance: It has good resistance to most acidic, alkaline, and molten salt media (except for strong oxidizing acids), especially suitable for harsh environments containing corrosive gases such as HCl and SO ₂.
High thermal conductivity: High thermal conductivity helps improve combustion efficiency, ensure more uniform temperature distribution in the furnace, and stabilize heat conduction.
Lightweight and long-lasting: RBSiC tech ceramic is over 30% lighter than traditional metal nozzles, making installation and maintenance more convenient, while significantly extending its service life.
MAIN PARAMETER
| High temperature kiln equipment industry | RBSiC |
| SiC Content | ≥90% |
| Si Content (%) | 5%-10% |
| Bulk Density (g/cm3) | 3.02~3.07 |
| Apparent Porosity | <0.1% |
| Room Temperaturestrength (MPa) | 260~270 |
| Strength At 1300℃(MPa) | 280~290 |
| Elasticity Modulus At 20℃ | 330 |
| Thermal Conductivity At 1200℃(W/mk) | 45 |
| Thermal Expansion x10-6/℃ | 4.5 |
| Max Using Temperature(Air Atmosphere)℃ | 1350 |
| Hardness At 20°C (Kg/mm2) | 2400 |
| Fracture Toughness At 20°(MpaxM1/2) | 3.3 |
PRODUCT DETAIL
The reaction bonded silicon carbide burner nozzle is also a key component of the complete set of desulfurization and dust removal equipment for thermal power plants and large boilers. This type of nozzle produced domestically is gradually replacing imported products, with excellent performance such as high strength, high hardness, strong corrosion resistance, severe wear resistance, and high temperature resistance. It exhibits an extremely long service life under harsh conditions.

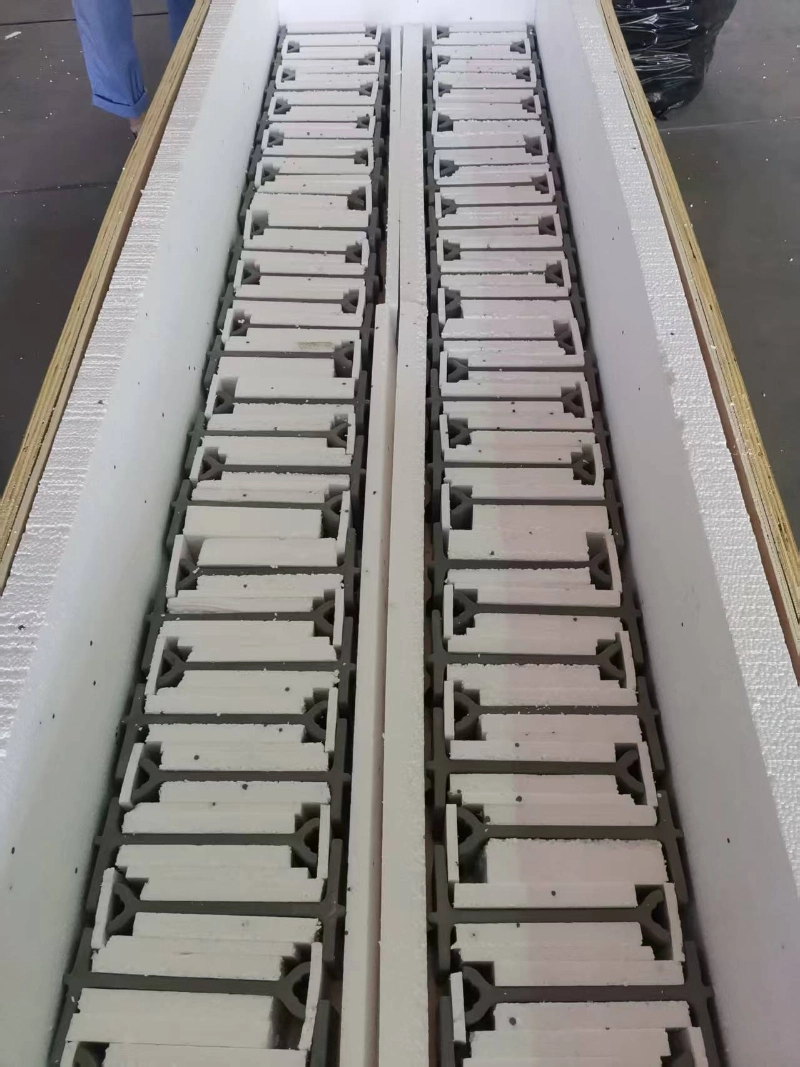

PACKING
