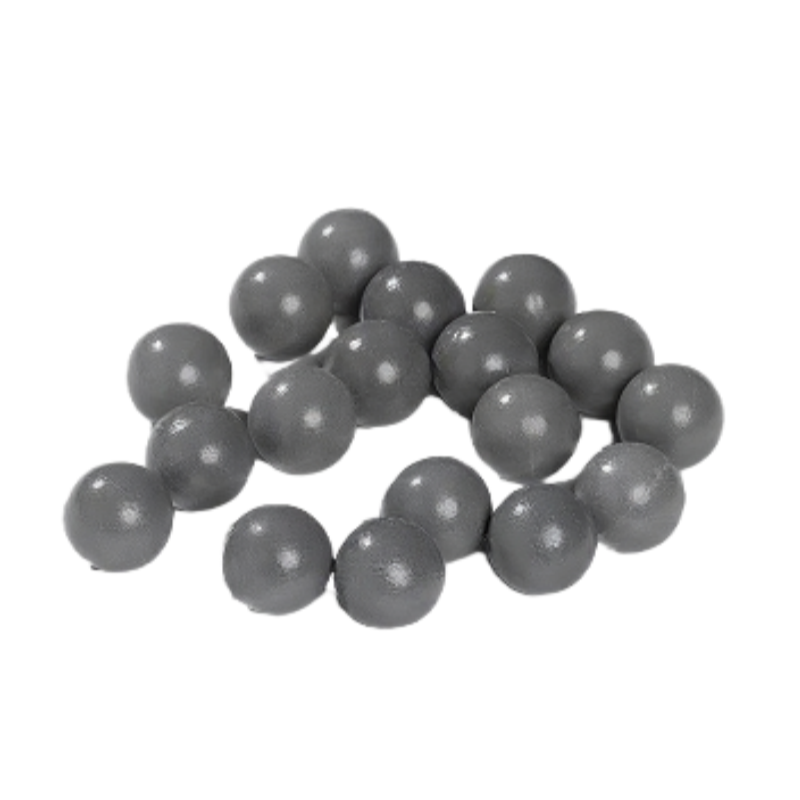

Grinding Ball | NSiC Grinding Ball | High Hardness & Wear-Resistant Silicon Carbide Ball
PRODUCT DESCRIPTION
The Silicon Carbide Grinding Ball is a high-performance ceramic grinding medium, primarily composed of silicon carbide (SiC). Wear-resistant ball offers exceptional hardness, outstanding high-temperature resistance, and excellent chemical stability. Wear-resistant ball is widely used in precision grinding and processing applications that demand high material purity, accuracy, and efficiency,wear-resistant ball is a key consumable for ultrafine grinding and surface treatment in modern high-end industries.
ADVANTAGES
Ultra-High Hardness & Wear Resistance: With a Mohs hardness of 9.2–9.3, the grinding ball exhibits superior wear resistance.Wear-resistant ball minimizes self-wear during operation, effectively preventing contamination of high-purity materials and significantly extending service life. Silicon carbide ball offers 3–5 times higher wear resistance than zirconia balls and 5–8 times higher than alumina balls.
Excellent Thermal Stability & Chemical Inertness:Capable of withstanding high temperatures, oxidation, and corrosion from acids and alkalis,silicon carbide ball performs reliably in harsh chemical environments.Silicon carbide ball ensures minimal contamination, with extremely low metal ion leaching (Fe <5ppm, Na/K <1ppm).
High Density & Efficiency: With a bulk density typically exceeding 3.1 g/cm³, the NSiC grinding ball delivers greater impact energy during grinding, enhancing efficiency by 30–50% and enabling the production of uniformly distributed ultrafine powders.
SELECTION SUGGESTION
High Purity Requirements → RSiC / NSiC / RBSiC
Cost-Effectiveness Requirements → RBSiC
Corrosion Resistance Requirements → RSiC / NSiC
MAIN PARAMETER
High Temperature Kiln Equipment Industry | RSiC | NSiC | RBSiC |
SiC Content (%) | ≥99% | 75% | ≥90% |
SisN+ Content (%) | / | ≥25% | 5%-10% |
Bulk Density (g/cm3) | 2.65~2.75 | 2.73~2.83 | 3.02~3.07 |
Apparent Porosity (%) | <17 | <12 | <0.1 |
Room temperature strength (MPa) | 90~100 | 160~170 | 260~270 |
Strengthat 1300℃(MPa) | 100-110 | 170~180 | 280~290 |
Elasticity modulus at 20℃ | 240 | 250 | 330 |
Thermal Conductivity At 1200℃(W/mk) | 36 | 20 | 45 |
Thermal Expansion x10-6/℃ | 4.6 | 4.7 | 4.5 |
Max Using Temperature（℃） | 1650℃ | 1450℃ | 1350℃ |
Hardness At 20°C (Kg/mm2) | 2000 | 2500 | 2400 |
Fracture Toughness At 20°(MpaxM1/2) | 2.0 | 4.0 | 3.3 |
PRODUCT DETAIL
The silicon carbide ball, known for its high hardness and wear resistance, provides a comprehensive solution for grinding applications that require high purity, efficiency, and durability. Wear-resistant ball offers significant long-term cost advantages. Silicon carbide ball is an essential material supporting advancements in high-end manufacturing and material technology.
PACKING
OUR ADVANTAGE
As an industry-trade integrated enterprise, Riseport Global Traders Ltd.(Shenyang) offer comprehensive OEM and ODM services, leveraging our deep market insight to develop products that align with buyer preferences. We welcome customized orders, including dimensions not listed in our catalog, and provide samples for quality validation. Our expertise lies in tailoring silicon carbide kiln furniture to your specific requirements, offering customized dimensions and designed solutions to meet diverse production needs..
