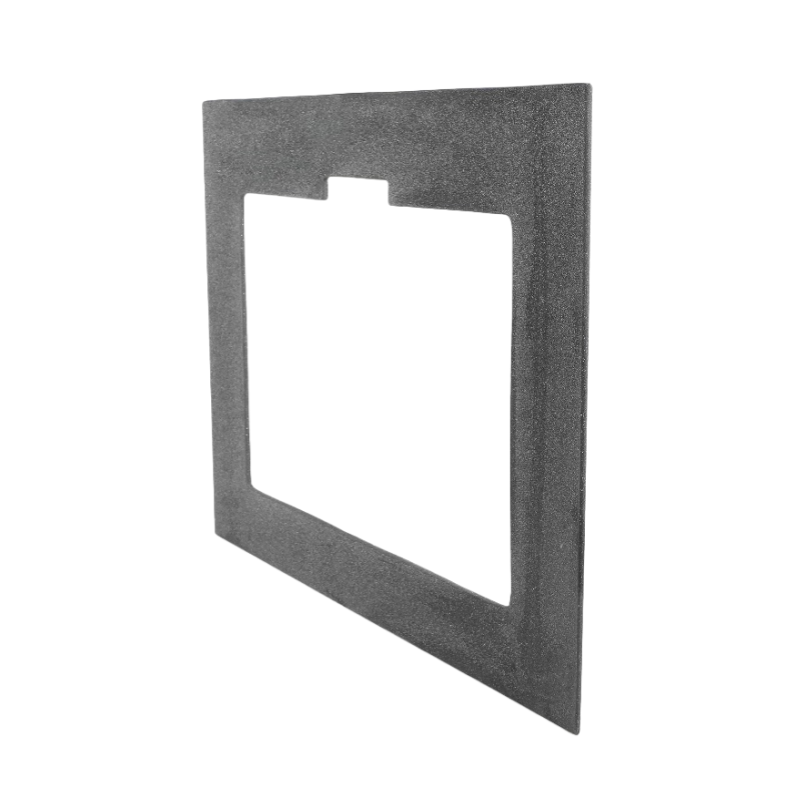

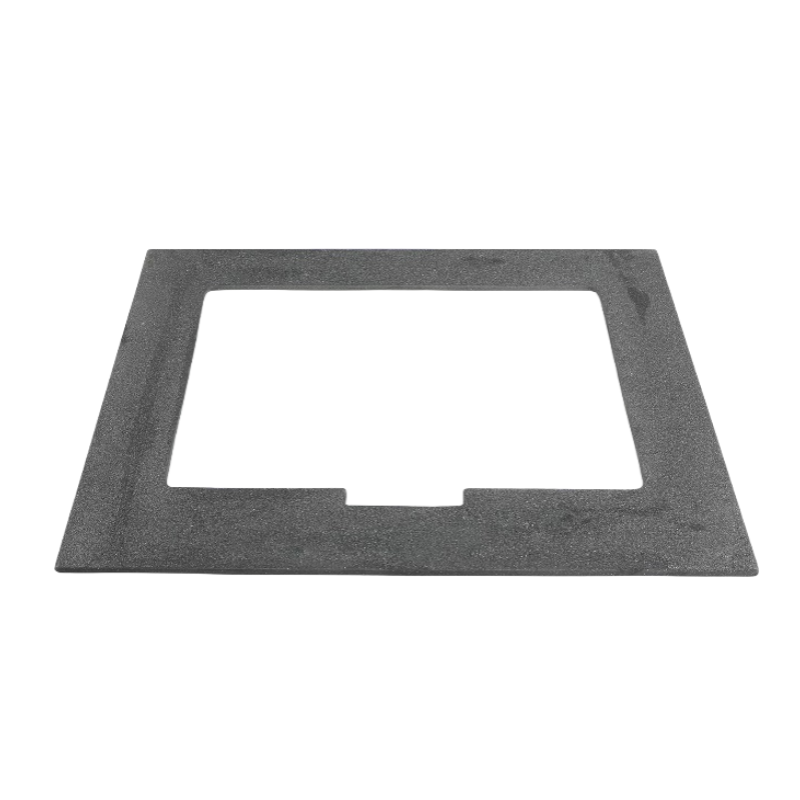

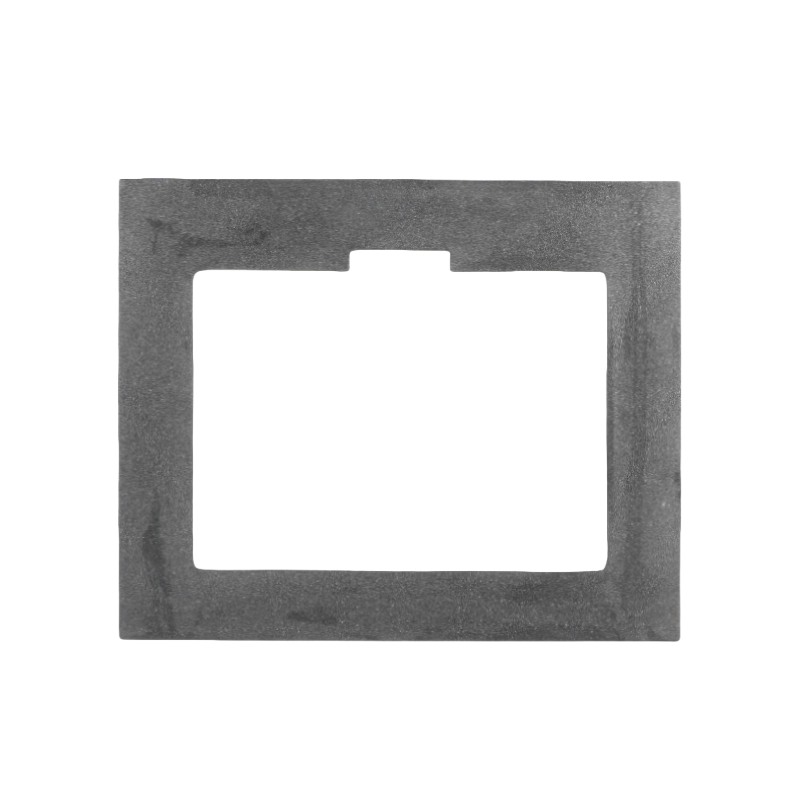

Kiln Shelfves RSiC Advanced Ceramic Basin Setter Refractory
PRODUCT DESCRIPTION
The RSiC Basin Setter is crafted from recrystallized silicon carbide (SiC), an advanced high-performance ceramic material. RSiC basin setter is known for its exceptional wear resistance, high thermal conductivity, corrosion resistance, and remarkable high-temperature strength, this silicon carbide basin setter undergoes a specialized recrystallization process to form a high-purity, densely structured component with irreplaceable applications across multiple high-end industrial sectors.
As a premium building material, the recrystallized silicon carbide basin setter combines high strength, purity, aesthetic appeal, and hygiene standards. While the initial investment may be relatively high, its outstanding durability and near-maintenance-free characteristics make silicon carbide basin setter an excellent choice for households pursuing quality living. It is widely utilized in high-end bathroom and sanitary ware fields.
The RSiC basin setter can be integrated with kiln furniture such as beams and columns to construct comprehensive firing systems. Suitable for both single-layer and multi-layer firing configurations, it can be customized according to specific kiln requirements. This kiln shelves basin setter demonstrates significant advantages in improving product qualification rates and energy efficiency. With superior thermal conductivity and high-temperature performance, the RSiC basin setter offers flexible loading/unloading capabilities and lightweight, energy-saving operation.
MAIN PARAMETER
High Temperature Kiln Equipment Industry | RSiC |
SiC Content (%) | ≥99% |
Bulk Density (g/cm3) | 2.65~2.75 |
Apparent Porosity (%) | <17 |
Room temperature strength (MPa) | 90~100 |
Strengthat 1300℃(MPa) | 100-110 |
Elasticity modulus at 20℃ | 240 |
Thermal Conductivity At 1200℃(W/mk) | 36 |
Thermal Expansion x10-6/℃ | 4.6 |
Max Using Temperature（℃） | 1650℃ |
Hardness At 20°C (Kg/mm2) | 2000 |
Fracture Toughness At 20°(MpaxM1/2) | 2.0 |
PRODUCT DETAIL
The silicon carbide basin setter, manufactured from premium silicon carbide ceramics, serves as a critical load-bearing tool for high-temperature sintering, heat treatment, metallurgy, and chemical sintering processes. These recrystallized silicon carbide basin setters are specifically designed for high-temperature furnace applications and can be fully customized according to customer-provided drawing dimensions.
The manufacturing process for the RSiC basin setter, including kiln frames, firing basins, and setting devices, demonstrates exceptional precision with outstanding structural stability. The entire product series fully embodies the comprehensive advantages of recrystallized silicon carbide materials, including high-temperature strength, excellent thermal shock resistance, chemical corrosion resistance, and extended service life. These kiln shelves basin setters are particularly suitable for industrial sintering environments with stringent requirements for dimensional accuracy and thermal stability.
