NSiC Support Tech Ceramic High Temperature Resistance
PRODUCT DESCRIPTION

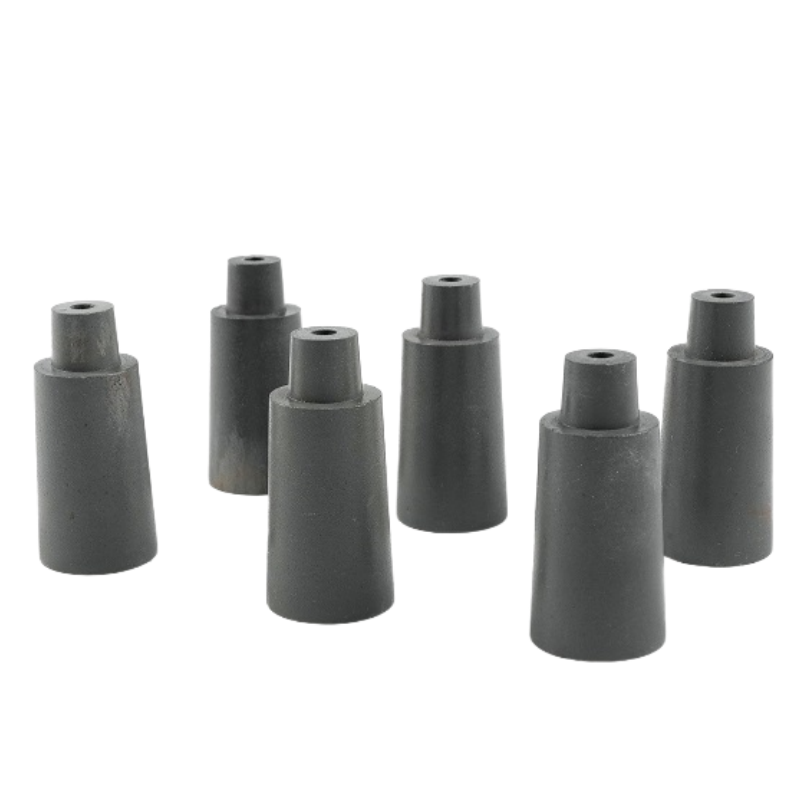

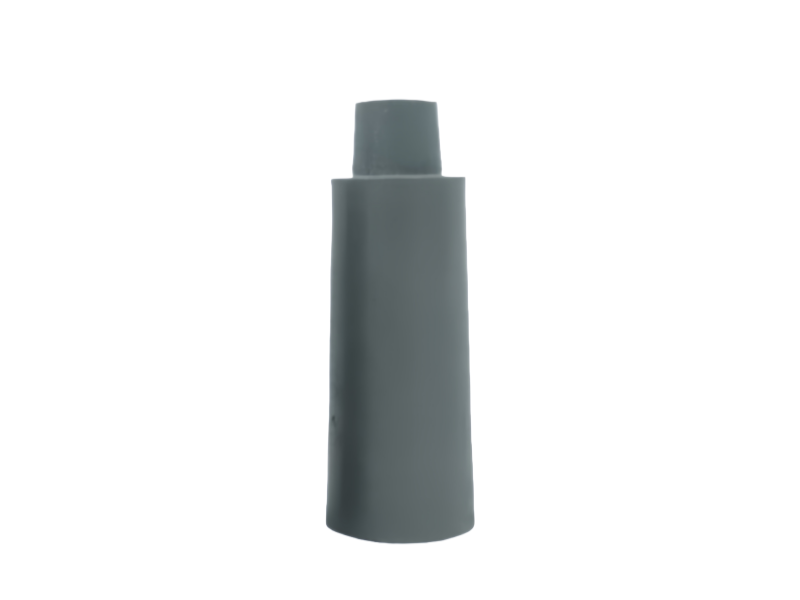

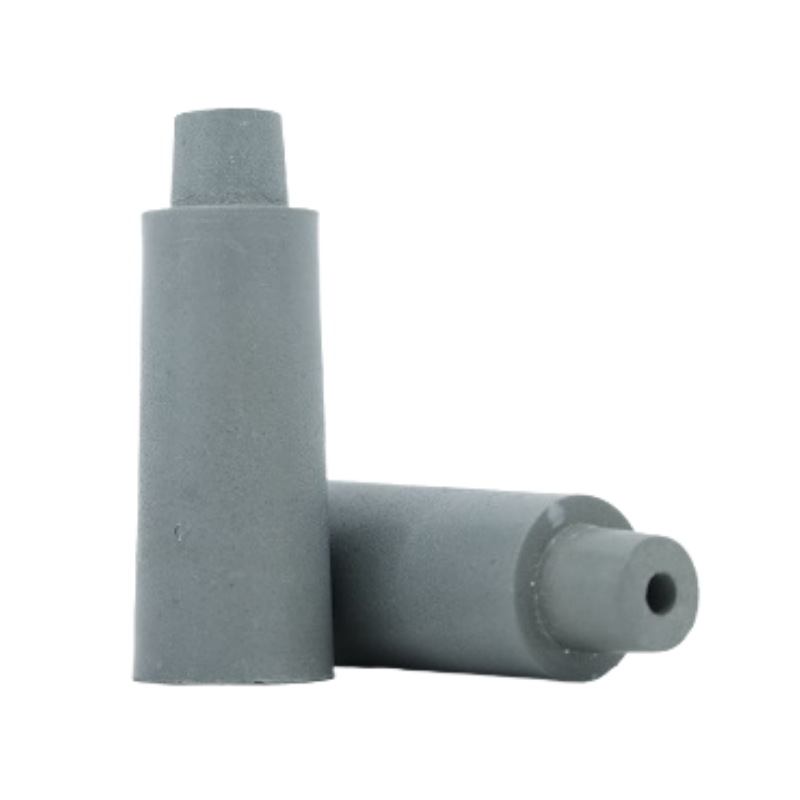

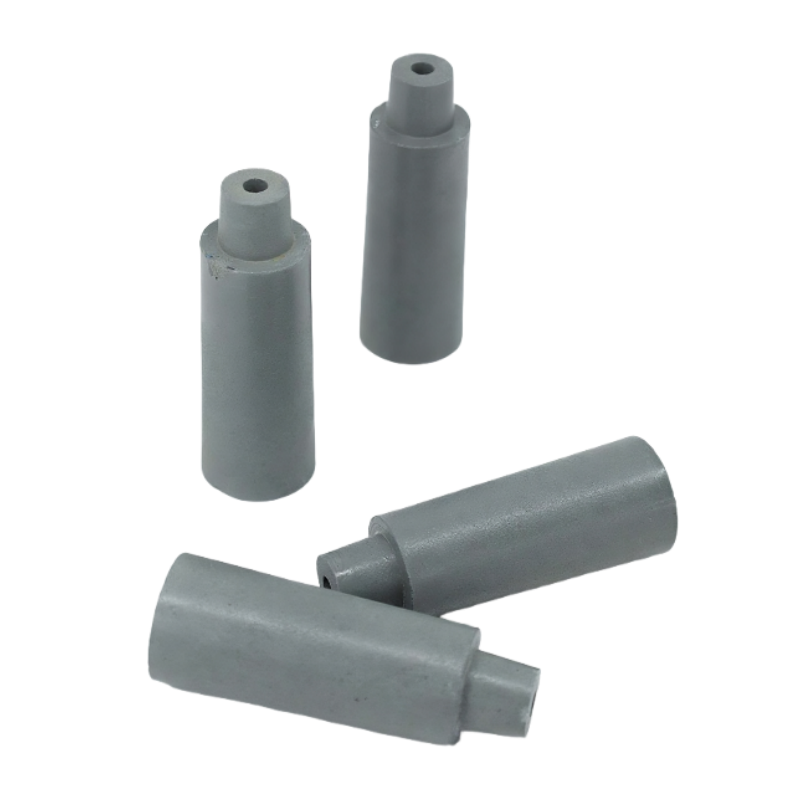

The NSiC support represents a unique advancement in technical ceramics, engineered from a composite of silicon nitride bonded with silicon carbide.
The inherent hardness of this technical ceramic support ensures exceptional durability in abrasive environments.The combination of low thermal expansion and high thermal conductivity allows this NSiC support to withstand severe and rapid temperature cycles without cracking.The technical ceramic support delivers extreme thermal shock resistance, excellent high-temperature oxidation stability, outstanding mechanical strength, and remarkable dimensional stability under thermal load.
MAIN PARAMETER
High Temperature Kiln Equipment Industry | NSiC |
SiC Content (%) | 75% |
SisN+ Content (%) | ≥25% |
Bulk Density (g/cm3) | 2.73~2.83 |
Apparent Porosity (%) | <12 |
Room temperature strength (MPa) | 160~170 |
Strengthat 1300℃(MPa) | 170~180 |
Elasticity modulus at 20℃ | 250 |
Thermal Conductivity At 1200℃(W/mk) | 20 |
Thermal Expansion x10-6/℃ | 4.7 |
Max Using Temperature（℃） | 1450℃ |
Hardness At 20°C (Kg/mm2) | 2500 |
Fracture Toughness At 20°(MpaxM1/2) | 4.0 |
PRODUCT DETAIL
When long-term operation in high-temperature oxidation environments and the ability to withstand high mechanical stress are required, the NSiC support is the premier choice. This robust silicon carbide support is ideally suited for the most challenging industrial environments.
The unique composite structure of this technical ceramic support ensures higher reliability and a longer service life compared to conventional materials, particularly under conditions of high-stress impact and abrasive wear, such as in slurry transportation systems and coal mill liners. The exceptional performance of technical ceramic support in thermal cycling also makes NSiC support an irreplaceable material for critical refractory applications.

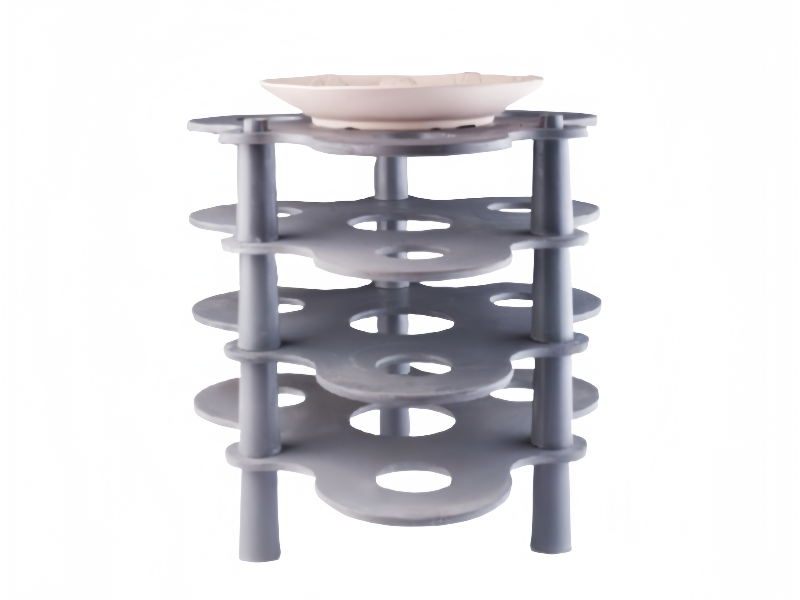

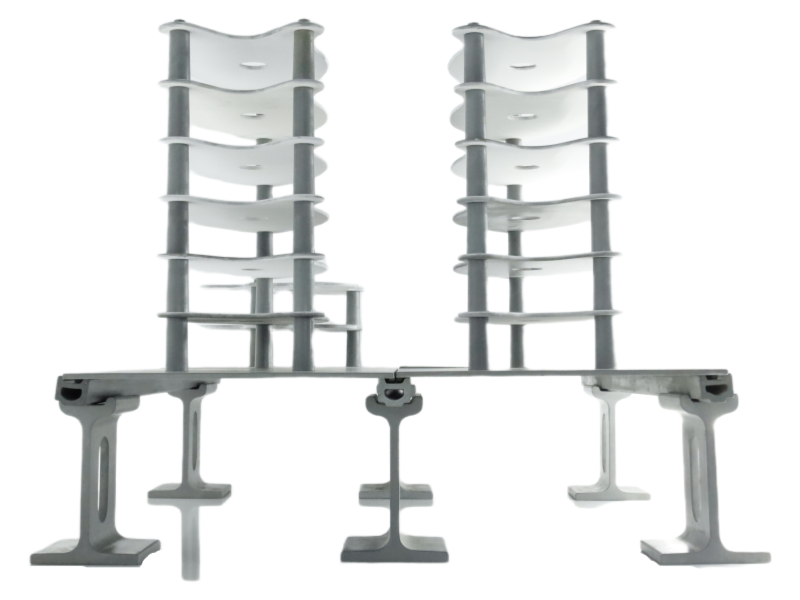

A high-performance kiln setting system relies on advanced silicon carbide support components for optimal operation. The core structure utilizes technical ceramic support combined with specialized fish-shaped plates, all manufactured from premium silicon carbide support materials. This configuration of NSiC support elements enables rapid assembly into stable multi-level setups. The exceptional thermal shock resistance and structural integrity of these silicon carbide support components ensure uniform heating and reliable sintering performance in demanding high-temperature environments.
