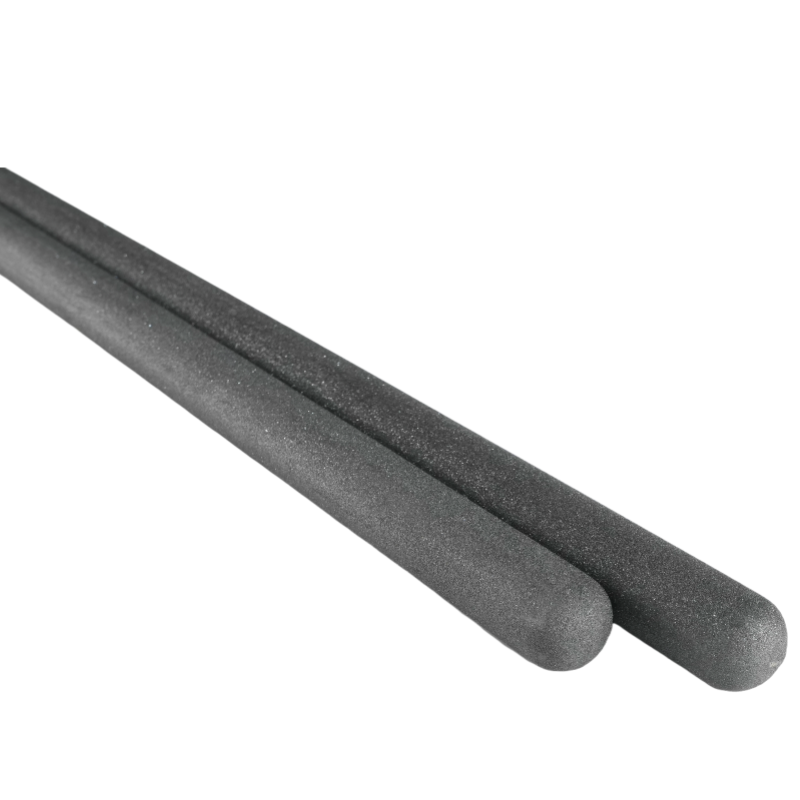

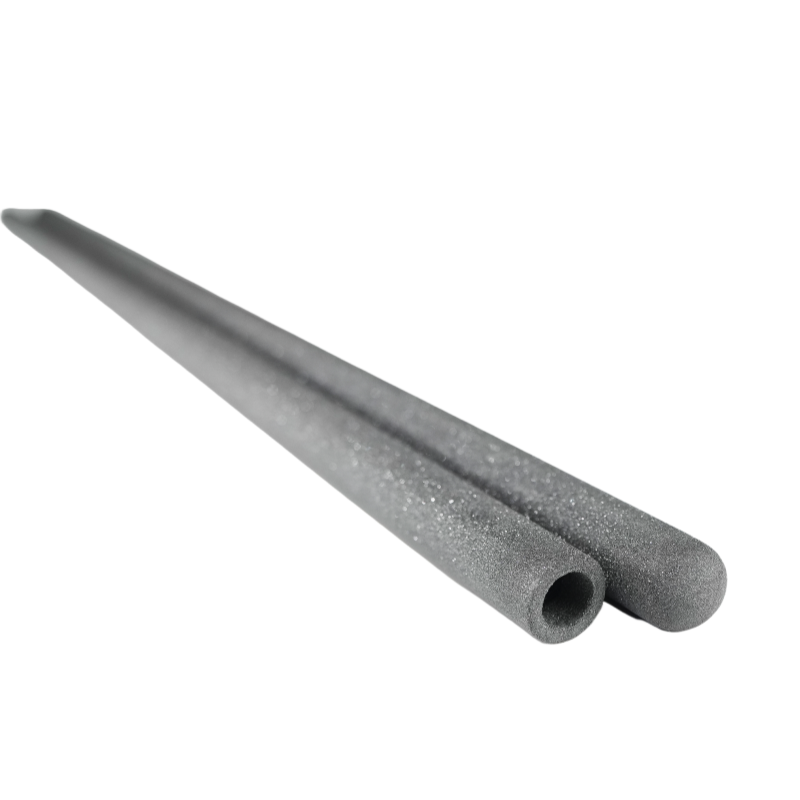

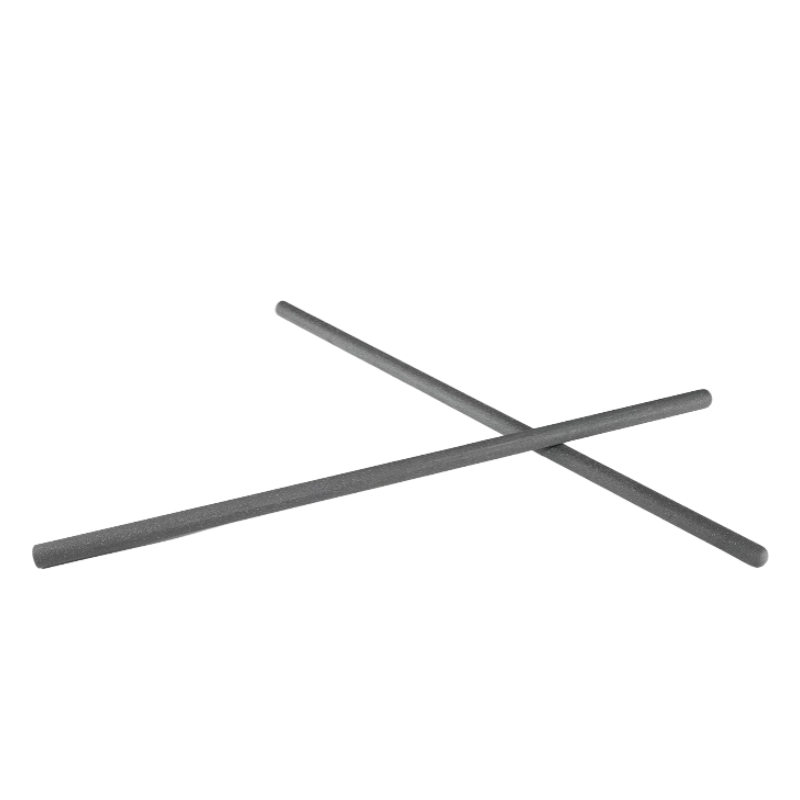

Thermocouple Protection Tube RSiC Tech Ceramic
PRODUCT DESCRIPTION
The RSiC protection tube represents a breakthrough in high-performance ceramic components. This advanced thermocouple protection tube delivers unparalleled performance where temperature strength, wear resistance, and thermal stability are critical. The RSiC thermocouple tube excels in applications ranging from semiconductor crystal growth to special metallurgy, offering reliable protection and accurate temperature measurement under the most demanding conditions.
Ultra-High Temperature Tolerance:
The working temperature of the protection tube in air is 1600 ° C, and it can reach 1800 ° C in the short term.
Extreme Environmental Adaptability: Protection tube is resistant to chemical corrosion, molten aluminum (800°C), HCl gas, and sodium vapor.
Superior Thermal Shock Resistance: Withstands repeated water quenching from 1000°C to room temperature without failure.
Rapid Response Capability: Thermal response time of 8-12 seconds at 1200°C, RSiC protection tube is three times faster than alumina tubes.
FEATURES & BENEFITS
· High temperature resistance
· Thermal shock resistance
· High thermal conductivity
· High mechanical strength
· Acid and alkali resistance
· Wear resistance
Selection Guide
Diameter Options:
4mm: Fastest response (8 seconds) with compact design;
8mm: Enhanced flexural strength for vibrational environments;
Custom Shapes: Triangular/square cross-sections available with anti-rotation design;
Connection Methods:
Flange: DN16-KF standard for vacuum systems;
Threaded: M18x1.5 metric thread for high-pressure applications;
Direct Insertion: With Al₂O₃ ceramic sealant for quick replacement;
Technical Specifications::
Material: RSiC (Recrystallized Silicon Carbide);
SiC Content: ≥99%;
Bulk Density: 2.65-2.75 g/cm³;
Maximum Service Temperature: 1650°C;
Thermal Conductivity: 36 W/m·K at 1200°C;
MAIN PARAMETER
High Temperature Kiln Equipment Industry | RSiC |
SiC Content (%) | ≥99% |
Bulk Density (g/cm3) | 2.65~2.75 |
Apparent Porosity (%) | <17 |
Room temperature strength (MPa) | 90~100 |
Strengthat 1300℃(MPa) | 100-110 |
Elasticity modulus at 20℃ | 240 |
Thermal Conductivity At 1200℃(W/mk) | 36 |
Thermal Expansion x10-6/℃ | 4.6 |
Max Using Temperature（℃） | 1650℃ |
Hardness At 20°C (Kg/mm2) | 2000 |
Fracture Toughness At 20°(MpaxM1/2) | 2.0 |
APPLICATION
Semiconductor Crystal Growth
The RSiC thermocouple tube maintains exceptional stability in silicon single crystal CZ furnaces, showing less than 0.3% temperature drift over 6 months in argon environments. For SiC crystal PVT growth, this thermocouple protection tube achieves 3000-hour service life at 2300°C, significantly outperforming conventional tubes.
Special Metallurgy
In titanium alloy vacuum melting applications, the RSiC thermocouple tube demonstrates 10 times better resistance to titanium vapor penetration compared to ZrO₂ alternatives. For high-purity aluminum melting, RSiC thermocouple tube effectively prevents silicon contamination, maintaining aluminum purity below 5ppm silicon content.
New Energy Materials
The RSiC thermocouple tube shows excellent erosion resistance to lithium cobalt oxide in oxygen atmospheres during positive electrode material sintering. In photovoltaic polycrystalline silicon ingot production, it controls temperature measurement accuracy within ±1.5°C, substantially improving process control compared to traditional thermocouple protection tubes.
